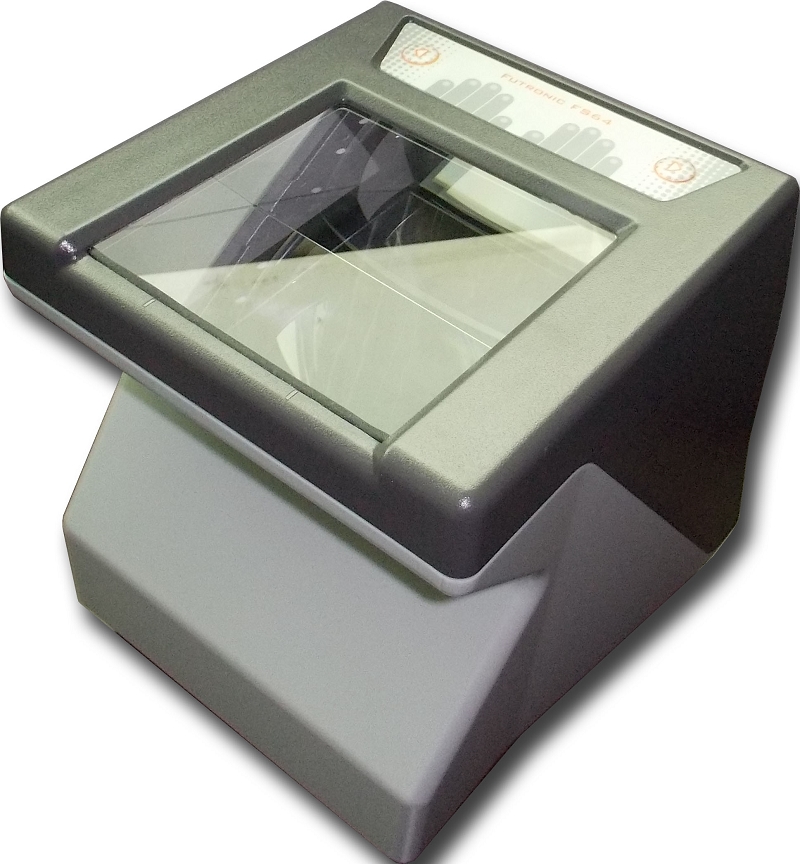

FS64 EBTS/F & Mobile ID FAP60 Certified ID Flat Fingerprint Scanner
FS64 is a low cost fingerprint scanner from Futronic with 3.2x3.0 inch (81.28x76.20 mm) scanning area. Its advanced optical system captures high quality 4 fingerprints image in about 1.0 sec. It can also capture fingerprint in a 1.6x1.5 inch (40.64x38.10mm) scanning area to create a rolling fingerprint image. The image captures by FS64 is high quality and is able to pass the FBI's EBTS/F & Mobile ID standard. The outlook design of FS64 is ergonomic and robust. It is suitable for use in various environments and applications including border control, electronic ID, passport issuing and electronic election enrollment and identification. Fully programmable LEDs, buttons and acoustic buzzer provide the largest degree of freedom to system developers to design an intuitive user interface. All these features make FS64 the most cost effective and affordable solution for large scale fingerprint identification system.
FS64 works with Futronic Windows SDK for multi-finger template extraction and matching. For detail, please contact us.
|Roll Print Size||1.6 inch x 1.5 inch (40.64mm x 38.1mm)|
|Scanning Window Size||3.2 inch x 3.0 inch (81.2mm x 76.2mm)|
|Optical Resolution||500ppi, 256 gray level with 1600x1500 pixels image output.|
|Image Quality||FBI IQS IAFIS Image Quality Specification Appendix F|
|Weight / Dimension||2.1 kg / 152 x 149 x155mm|
|Operating Temperature||0°C to +50°C, 0-90% Relative Humidity, non-condensing|
|Housing||ABS outer shell and aluminium alloy internal frame|
|Workstation Computer||Computer Pentium 4 1.7 GHz or greater with 1GB RAM and display resolution of 1280 x 1024 (1920x1280 preferable). With USB2.0 port (500mA)|
|Standard Features||10 red & green dual colour LED indicators, 2 buttons and buzzer.|
|Power Consumption||5V, 300mA powered by USB bus, no external power supply require|
|OS Support||WinXP, Vista, Win7, Win8, Win10 and Linux|
|Certifications||FBI, FCC, CE, IP54 and RoHS Compliant|
|Software||Scan Demo, Enrollment Kit, WSQ, NFIQ|
|Warranty||One year limited warranty|
FS65 - OEM module
FS65 is OEM module of FS64. It is available for customers who want to integrate FS64 into their own products, such as portable voter registration station or fingerprint enrollment kiosk etc.
FS65 is same as FS64 without plastic shell and USB cable so that it can be embedded into any target system. It is even smaller and lighter:
- > Size, 143.4 (L) x 128.5(W) x 144.5(H)mm
- > Weight, 1.7kg
