FS26EU USB2.0 Dual Card Combo Reader

FS26EU USB2.0 Dual Card Combo Reader

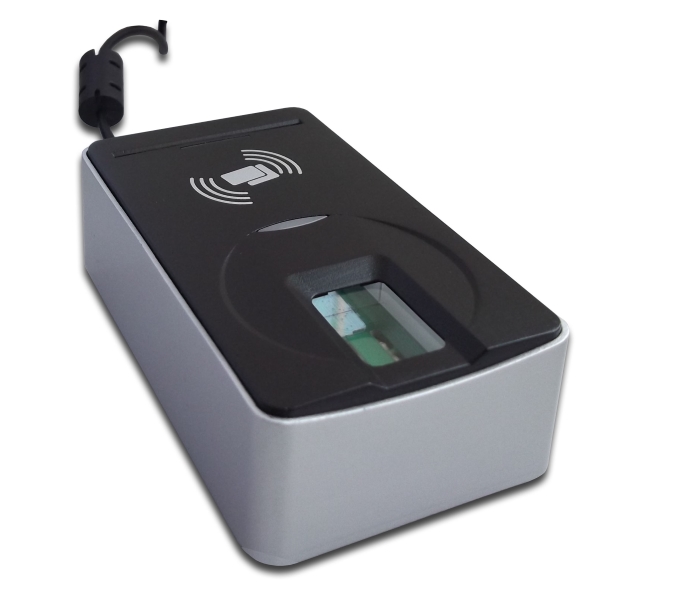

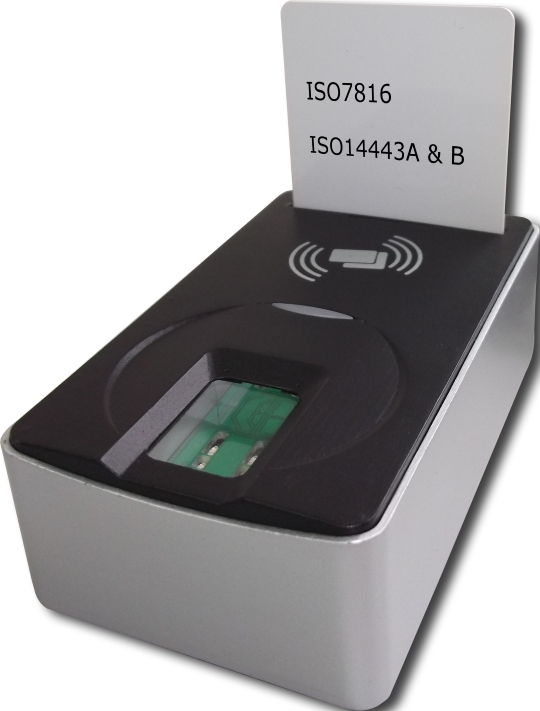

FS26EU Fingerprint Reader combines Futronic's FS26E USB2.0 Fingerprint Scanner and a ISO7816 contact & ISO14443A/B contactless combo smart card reader into one device. A SAM (Secure Access Module) is also built-in to increase the device security. FS26E meets the US Federal Information Processing Standard 201(FIPS 201) for Personal Identification Verification (PIV) of Federal Employees and Contractors.

FS26EU has a powerful BlackFin DSP processor for on device image processing. It communicates with the smart card reader by internal serial interface. After a fingerprint is captured, DSP will process the image and generate a template for smart card storage, MoD (Match On Device) or MoC (Match On Card) processing.

FS26EU is an ideal device for highly secure two-factor authentication application. A user can register fingerprint and store on smart card (carried by user) and do MoD or MoC with a freshly captured fingerprint from fingerprint scanner at the time of authentication. The registered fingerprint template will never leave the smart card that further enhances the system security.

  • Specification-general
    • > USB 2.0 compatible interface, plug and play device
    • > With a 2 meter standard USB cable
    • > Small size, 120x72x42 mm
    • > Light weight, 250 gram
    • > Operation temperature: -10 to +55 Degree Celsius
    •
  • Specification-Fingerprint matcher
    • > Fingerprint scanning window size is 16.26x24.38mm
    • > Image resolution is 320x480 pixel, 500 DPI
    • > Raw fingerprint image file size is 150K bytes
    • > With Live Finger Detection (LFD) feature
    • > Unique serial number programmed to USB Device Descriptor
    • > With internal memory for 100 fingerprint template storage
    •
  • Specification-Smart card reader (ACS Contact & Contactless Reader Module)
    • > Contact card
      • Full speed USB interface to PC with simple command structure
      • Support ISO7816 Class A, B & C, 5V, 3V, 1.8V contact cards *
      • Support microprocessor cards with T=0 or T=1 protocol
      • Support PPS, PC/SC & CT-API (Through wrapper on top of PC/SC)
      •
    • > Contactless card
      • Support ISO14443 A/B, Mifare classic cards *
      • Read/Write Speed up to 848Kbps
      • Card reading distance 30mm
      • Support PC/SC & CT-API (Through wrapper on top of PC/SC)
      •
    • > SAM
      • Support ISO7816 MCU Card
      •

* For specific supported card types, please contact Futronic for detail.

  • Typical Application
    • > e-Government
    • > e-Banking and e-Payment
    • > e-Healthcare
    • > Transportation
    • > Network Security
    •
